AMSA

Week 11: Orchestrating containers

Ferran Aran Domingo

ferran.aran@udl.cat

Oriol Agost Batalla

oriol.agost@udl.cat

Pablo Fraile Alonso

pablo.fraile@udl.cat

The problem

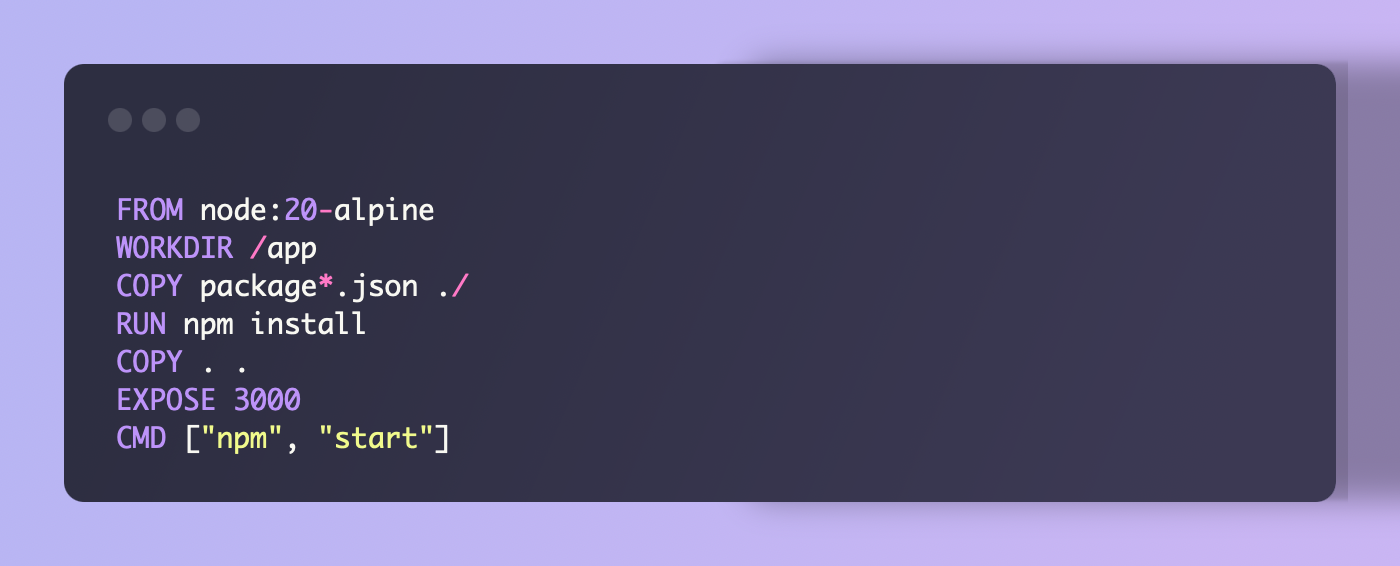

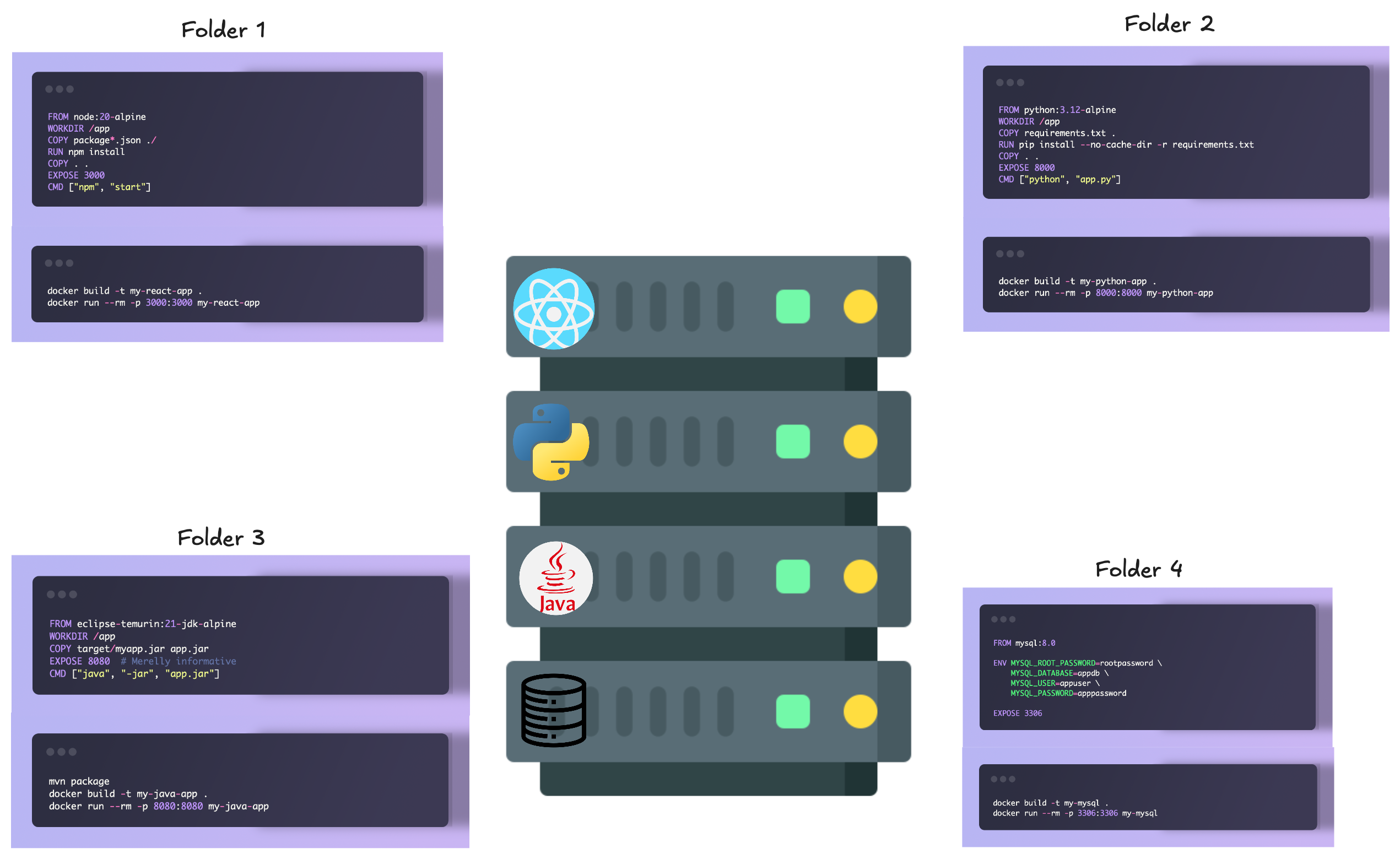

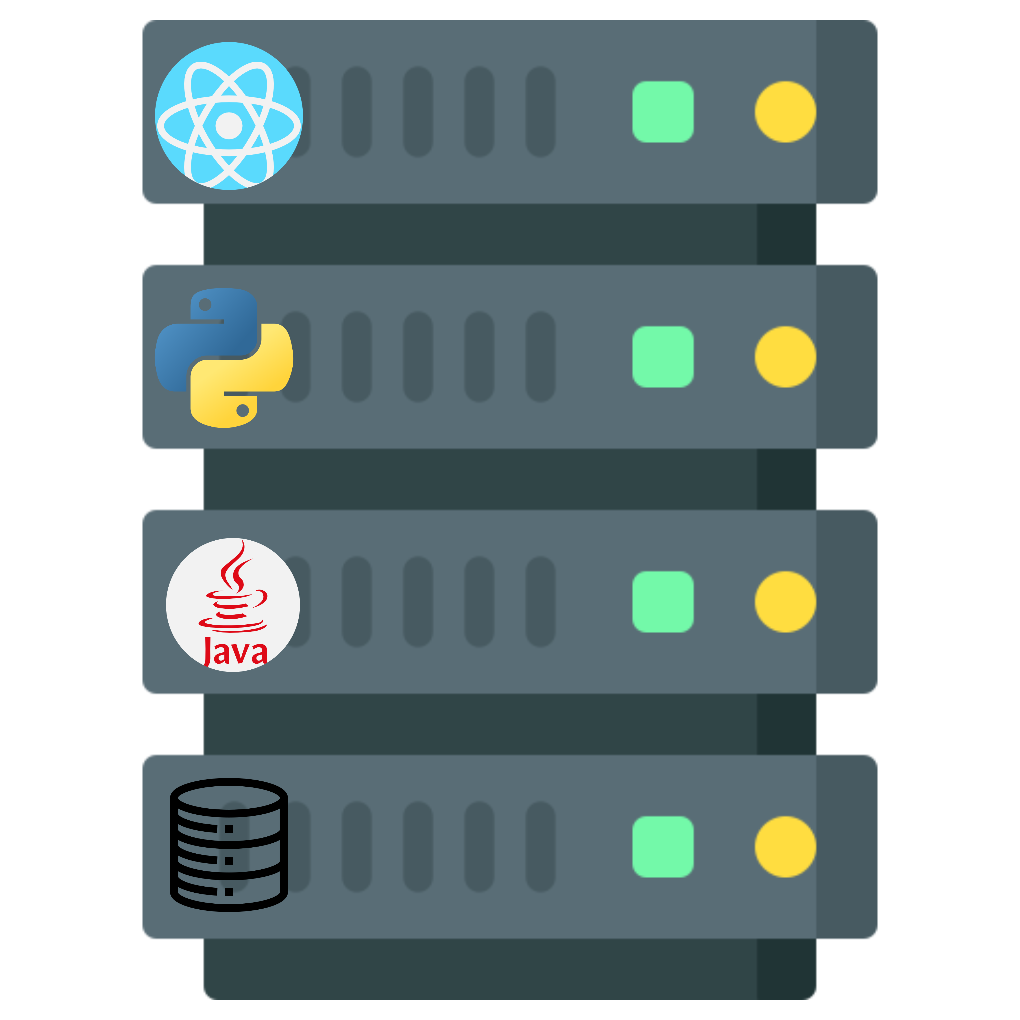

Let’s remember our server and how we fixed the situation with Docker

Dockerizing our apps

This doesn’t scale well..

Starting/restarting/stopping our services needs us to move between different folders
Docker containers are treated as standalone services when they’ll usually have some logic between them

Tip

Wouldn’t it be cool if there was something to orchestrate this different services? Something that also gave us the capability to manage some logic between them?

The solution

Introducing docker compose

A yaml file that:

Simplified control: define and control multiple containers from a single file and bring them up/down with one command.
Services: declare each component (image or build context, ports, environment variables, volumes).
Networks & Volumes: centrally configure networking and persistent storage for services.
Orchestration: express dependencies (depends_on), healthchecks, and scaling (e.g., docker compose up --scale).
Reproducibility: shareable, versioned configuration suited for local development, CI/CD, and deployments.

Our first compose file

services:
  frontend:
    build: folder_1
    ports:
      - "4000:3000"

services is always needed, top level definition to introduce the docker services
“frontend” declares a new container, named like that. We can put whatever we want here
build specifies the folder from which the docker should be built upon. It will search for a Dockerfile in that folder

Interacting with the services

docker build -t frontend .
docker run -p 3000:3000 frontend

docker compose build frontend
docker compose up frontend

Bash is almost the same, docker “turns” to docker compose
We no longer use tags to refer to docker containers, but refer to them by the service name in the compose file.

Tip

If no service is specified, we will refer to the whole compose file (all services)

Some more commands

docker compose up -> Start all services (foreground)
docker compose up -d -> Start all services (detached)
docker compose down -> Stop all services
docker compose ps -> List all running services
docker compose logs -> View logs from all services
docker compose exec api bash -> Open a bash terminal in the api service

Scalling services (k8s)

Docker allows us to scale services easily:

Docker swarm is another orchestration tool designed specifically for scaling and managing clusters of Docker nodes.
There’s also Kubernetes, which is more powerful and complex.

Note

We understand scaling as running multiple instances of the same service to handle increased load or provide redundancy.

Non-build images

For now, we’ve always built our images from a Dockerfile. What if we want to use an existing image from a registry and just configure it?

docker run -e MYSQL_ROOT_PASSWORD=rootpassword \
           -e MYSQL_DATABASE=appdb \
           -e MYSQL_USER=appuser \
           -e MYSQL_PASSWORD=apppassword \
           -p 3306:3306 \
           mysql:8.0

services:
    db:
        image: mysql:8.0
        environment:
            MYSQL_ROOT_PASSWORD: rootpassword
            MYSQL_DATABASE: appdb
            MYSQL_USER: appuser
            MYSQL_PASSWORD: apppassword
        ports:
            - "3306:3306"

We can directly specify the image to use with the image key.

Networking between services 🚨

If our service has the mapping:

ports:
    - "4000:3000"

What’s the address we should use to see it from our browser?

localhost:4000

Networking between services 🚨

Why localhost?

Localhost is a special address that always points to the machine you’re currently using. When you run a web server on your computer and map its port to your localhost, you’re essentially telling your computer to listen for incoming requests on that specific port.

If the server was running on a different machine, you would need to use that machine’s IP address or hostname to access it.

Networking between services 🚨

Can you detect the problem here?

services:
  backend:
    build: folder_2
    ports:
      - "4000:3000"
  db:
    image: mysql:8.0
    ports:
      - "5000:5000"

Networking between services 🚨

Will we ever access the database from the outside?

No! The database is only needed by the backend service.

But what if…

No, you really shouldn’t expose the database to the outside world unless absolutely necessary.

Networking between services 🚨

In order to avoid exposing unnecessary ports, we can remove the ports section from the db service

services:
  backend:
    build: folder_2
    ports:
      - "4000:3000"
  db:
    image: mysql:8.0

But how does the backend service access the database then?

Networking between services 🚨

Docker Compose automatically creates a default network for all services defined in the docker-compose.yml file. Each service can communicate with other services using the service name as the hostname (IP).

So, in our case, the backend service can access the database using the hostname db and the default MySQL port 3306.

services:
  backend:  # For backend, the db is accessible at `db:3306`
    build: folder_2
    ports:
      - "4000:3000"
  db:
    image: mysql:8.0

Networking between services 🚨

Using standalone Docker containers:

Using Docker Compose:

Dependencies between services

Sometimes, we want to make sure that a service starts only after another service is up and running We can use the depends_on key to specify these dependencies

services:
    backend:
        build: folder_2
        ports:
            - "4000:3000"
        depends_on:
            - db
    db:
        image: mysql:8.0

Tip

Note that depends_on only ensures that the db service is started before the backend service. It does not guarantee that the db service is ready to accept connections. To ensure that a service is ready, you may need to implement health checks or wait-for-it scripts.

Volumes and bind mounts

Sometimes, we want to persist data generated by a service, even if the container is removed. For example, a database service needs to store its data on disk.

We can use bind mounts to persist data

services:
    db:
        image: mysql:8.0
        volumes:
            - ./db-data:/var/lib/mysql

This will create a bind mount volume that maps the ./db-data directory on the host to the /var/lib/mysql directory in the container.

Tip

There’s something called named volumes as well, which are managed by Docker and not tied to a specific host directory, usually better for production environments. Feel free to check them out in the references!

Summary

Compose basics: describe multiple services in one YAML file; refer to containers by service name.
Build vs image: use build: for local Dockerfiles, image: to pull a registry image.
Networking: services reach each other by hostname = service name; internal ports need not be exposed.
Ports: host:container maps host ports; expose only what is necessary.
Common commands: docker compose build, up/down, ps, logs, exec; -d to detach, --scale to run multiple instances.
Volumes: persist data with bind mounts or named volumes; useful for databases.
Dependencies: use depends_on to control startup order; consider health checks for readiness.
Best practices: avoid exposing databases, use explicit image tags, keep secrets out of compose files.

Quizz

Quizz:

Does depends_on guarantee that the depended-on service is ready to accept connections? If not, how to make it wait?
If image: is given without a tag (e.g., redis), what is pulled and why is that a reproducibility risk?
When do we use docker compose up vs docker compose up -d?
What’s docker compose -d another alternative for?
When do we use build: vs image: in a service definition?
How do services communicate with each other in Docker Compose networking?

References

References:

Docker compose documentation: https://docs.docker.com/compose/
Volumes and persistence (bind mounts vs named volumes): https://docs.docker.com/storage/volumes/
Healthcheck (container readiness) and using it with depends_on: https://docs.docker.com/engine/reference/builder/#healthcheck and https://docs.docker.com/compose/compose-file/compose-file-v3/#depends_on
Scaling & orchestration; when to move to Kubernetes: https://docs.docker.com/compose/reference/up/ and https://kubernetes.io/docs/
Troubleshooting networking and platform differences (Linux vs macOS/Windows): https://docs.docker.com/desktop/networking/

Additional Exercices

Create a super-simple api and implement a healthcheck endpoint.

Verify that the healthcheck works by using it in a depends_on clause in a docker-compose file.

Activity 4

Ready to have some fun? Check out the second part of the fourth AMSA activity here!
