AMSA

Week 4: Communicating processes

Ferran Aran Domingo

ferran.aran@udl.cat

Oriol Agost Batalla

oriol.agost@udl.cat

Pablo Fraile Alonso

pablo.fraile@udl.cat

Goals for today

Any questions from the previous session?
Learn how processes communicate between themselves asynchronously
Learn about the nohup command
Present and explain Prac-2.3

Communicating processes

The asynchronous way

We’ve already seen how to communicate a process with the kernel when using system calls (which are interrupts under the hood).
But how would we notify another userspace process about something?

Note

Can’t we do that with pipes?

What is a signal?

Signals are a mechanism for inter-process communication in Unix-like systems.
They are asynchronous notifications sent to a process to notify it of an event.
Examples:
- SIGKILL → immediately terminates a process.
- SIGTERM → gracefully terminates a process.
- SIGHUP → hangup signal, often sent when a terminal closes.
A process can handle, ignore, or take default action on most signals.

Signals

Helper python program

We’ll be using a little python program to illustrate how signals work. For now the program will just print a digit every second:

import time
import sys

def main():
    counter = 0
    while True:
        print(f"Tick {counter}")
        sys.stdout.flush()
        counter += 1
        time.sleep(1)

if __name__ == "__main__":
    main()

Create a file named amsa.py and paste the code. Naming the file this way will come handy later when searching for the process PID.

Sending signals

To send signals, we’ll be using the command kill, which requires:
- The signal we want to send
- The pid of the target process
So if we run kill -KILL <PID>, we are going to terminate the targeted process with SIGKILL signal.

`SIGKILL` in action

Run the python program and open a second terminal. We’ll be sending signals from the second one.
Since we know that sending SIGKILL to a process will terminate it, we expect the program to stop printing digits and finish.
Find out the PID of the process and run kill -KILL <PID>, watch what happens with the python program.

Tip

Use ps aux | grep amsa to easily find the PID

amsa@amsa:~$ ps aux | grep amsa
fnao       42419  0.1  0.0  18952  9964 pts/1    S+   11:29   0:00 python3 amsa.py
fnao       42525  0.0  0.0   7300  2288 pts/4    S+   11:29   0:00 grep --color=auto amsa

The PID of the process here is 42419.

Common unix signals

Signal	Default Action	Comment
`SIGHUP`	Terminate	Hangup: sent when terminal closes
`SIGINT`	Terminate	Interrupt from keyboard (`Ctrl-C`)
`SIGQUIT`	Dump	Quit from keyboard (`Ctrl-\`)
`SIGKILL`	Terminate	Forced termination, cannot be ignored
`SIGTERM`	Terminate	Graceful termination request
`SIGSTOP`	Stop	Stop process execution (cannot ignore)
`SIGTSTP`	Stop	Stop from terminal (`Ctrl-Z`)
`SIGCONT`	Continue	Resume a stopped process
`SIGCHLD`	Ignore	Sent when a child process exits or stops
`SIGSEGV`	Dump	Invalid memory access (segmentation fault)
`SIGUSR1`	Terminate	User-defined signal (custom use)

Why is it called `kill`?

The kill command is confusing:
- It can send any signal, not just SIGKILL.
History
- In Unix 3rd Edition, kill could only forcibly kill a process.
- Unix 4th Edition added a signal number argument to send other signals.
Today
- Many signals exist that don’t terminate a process (SIGSTOP, SIGCONT, SIGCHLD…).
- The name remained for historical reasons — POSIX kept it to avoid more confusion.

Messing with signals

The `signal()` syscall

Have you noticed many signals share the same default actions? (SIGTERM and SIGKILL for example).

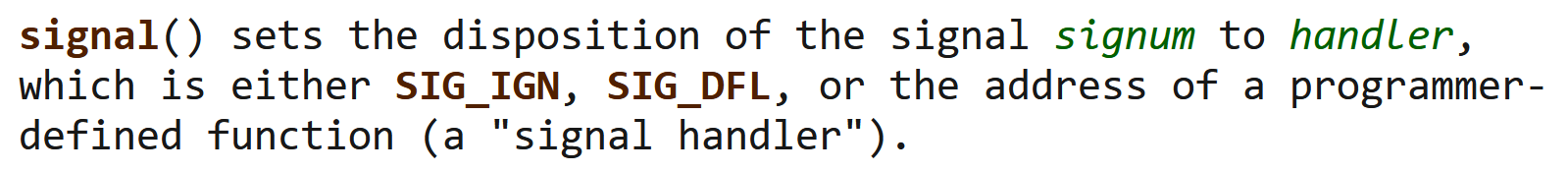

signal() system call lets processes define how are they going to behave when they receive a signal. Here is what the man page says:

Handlers

The action a process performs upon receiving a signal is called the handler.
It can be the default action, ignoring the signal, or a programmer-defined function.
We can run any code we want as a response to an action.

Note

Although we could change the action in response to any signal, SIGUSR1 and SIGUSR2 are already intended to mess with.

Customizing `SIGUSR1` on python

Modify the python program so it now registers a custom handler for SIGUSR1 as shown below:

import signal
import time
import sys

def handle_sigusr1(signum, frame):
    print("Hello world")

def main():
    signal.signal(signal.SIGUSR1, handle_sigusr1)

    counter = 0
    while True:
        print(f"Tick {counter}")
        sys.stdout.flush()
        counter += 1
        time.sleep(1)

if __name__ == "__main__":
    main()

Testing the custom handler

Run the python program and open a separate terminal.
Get the PID of the program with ps aux | grep amsa.
Which command are we going to use now for sending SIGUSR1 to our python program?

Note

Remember the syscall is always kill() no matter which signal are we sending. In this case: kill -USR1 <PID>

Hello world with signals!

fnao@fnao-phd-energy:~$ ps aux | grep amsa.py
fnao       42471  0.3  0.0  18952  9972 pts/2    S+   10:50   0:00 python3 amsa.py
fnao       42491  0.0  0.0   7304  2292 pts/3    S+   10:50   0:00 grep --color=auto amsa.py
fnao@fnao-phd-energy:~$ kill -USR1 42471

fnao@fnao-phd-energy:~/amsa$ python3 amsa.py
Tick 0
Tick 1
Tick 2
Tick 3
Tick 4
Hello world
Tick 5
Tick 6

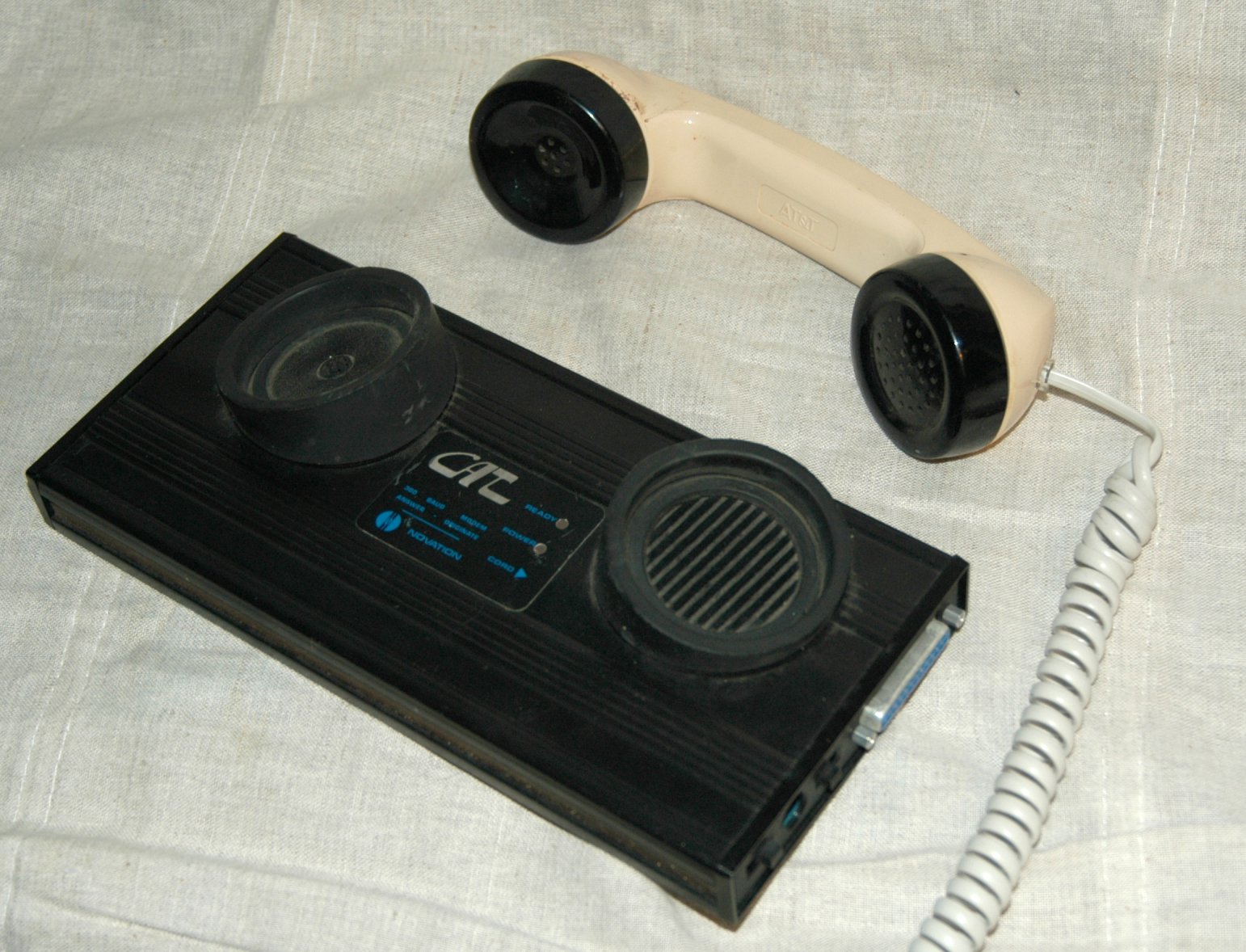

`SIGHUP`

The hung up signal

Its default action is to terminate the process, same as SIGKILL, SIGTERM, SIGINT and many others.
It’s sent when we close the terminal where we launched a program, thus the name.

Send the SIGHUP signal

Try sending the SIGHUP signal to the python program with kill -HUP <PID>. It should terminate as when sending SIGKILL and print ‘Hangup’ a the end.

Redirecting the program output

In order to experiment with the SIGHUP signal, we’ll want to redirect the output of the python program to a file so we can see what happens when the terminal is closed.
To do so, run your program like this: python amsa.py > out.txt.
Now, after running the program, from another terminal run cat out.txt and you’ll see the output is being written there.

Ignoring signals

Apart from the default action and a custom handler, we can also choose to ignore a signal, which is going to override the default action.
Modify the script and add a call to signal() that ignores SIGHUP as shown below:

import signal
import time
import sys

def handle_sigusr1(signum, frame):
    print("Hello world")

def main():
    signal.signal(signal.SIGUSR1, handle_sigusr1)
    signal.signal(signal.SIGHUP, signal.SIG_IGN)

    counter = 0
    while True:
        print(f"Tick {counter}")
        sys.stdout.flush()
        counter += 1
        time.sleep(1)

if __name__ == "__main__":
    main()

Testing `SIG_IGN` on `SIGHUP`

Run your python script redirecting its output python amsa.py > out.txt.
Send the SIGHUP signal kill -HUP <PID>.
Check the contents of out.txt file.
Send the SIGKILL signal kill -KILL <PID> to terminate the program.
Repeat step 1.
Now close the terminal where you have launched the python program.
Repeat step 3.

Why this is useful

Having a program that doesn’t stop after closing the terminal where we launched it can be very useful.
Imagine we need to run a python script on a remote machine that will take days to execute.
We can connect through SSH to the machine, run the program, close the terminal and we know it will keep running.

Meet `nohup`

But what if I want to achieve this with a program I haven’t built? It will not ignore SIGHUP, how can I close the terminal where I launched while not killing the program?
This is when the nohup command comes handy, it as simple as it sounds. It lets the user run any program while making it ignore the SIGHUP signal.
It also automatically redirect the output of the program to nohup.out.

Playing with `nohup`

Modify the python program so it no longer ignores SIGHUP (remove the last line we added)
Run the program like this: nohup python amsa.py
Try sending the SIGHUP signal or closing the terminal as we did before, we expect the result to be the same.
Great! Now we can run any command we want, close the terminal and have it still running!

References

Really Recommended References:

LINUX Signals: https://faculty.cs.niu.edu/~hutchins/csci480/signals.htm
signal() man page: https://man7.org/linux/man-pages/man2/signal.2.html
kill() man page: https://man7.org/linux/man-pages/man1/kill.1.html
nohup man page: https://www.man7.org/linux/man-pages/man1/nohup.1.html
Source code for nohup command: https://github.com/coreutils/coreutils/blob/master/src/nohup.c

Other References

Linux Signals. I Spent 2 Years to Understand This Part: https://www.youtube.com/watch?v=d0gS5TXarXc
The history of the terminal and signals: https://www.linusakesson.net/programming/tty/index.php
Why is the UNIX system call kill named ‘kill’?: https://unix.stackexchange.com/questions/185027/why-is-the-unix-system-call-kill-named-kill
History of SIGHUP: https://en.wikipedia.org/wiki/SIGHUP

Additional Exercices

If you really want to understand a little bit more what happens under the hood, you can do the following exercices. Be aware that you should read the “Really Recommended References” first, and then try to do this exercises.

Modify handler of SIGTSTP so Ctrl-Z does nothing.
Modify handler of SIGKILL so “Avada Kedavra” is printed when received.
Implement nohup in python.

Activity 2.3

Ready to have some fun? Check out the third part of the second AMSA activity here!
